Product Description:

Scope of Application
AI-536 is an intelligent multi-function all-in-one control board, which is widely used in various applications such as iFPD, industrial control and gateway, cloud terminal, face recognition equipment, vehicle-mounted central control, and commercial display.

Product Overview
AI-536 features Rockchip's RK3576 high-performance octa-core ARM 64-bit processor with a frequency of up to 2.2GHz. The chip is equipped with a 6TOPS computing power NPU and runs on Android 14.0 system with Linux 5.10 kernel. The GPU utilizes ARM G52 MC3, providing excellent performance and cost-efficiency. It supports 8K video encoding and decoding, 8K display output, multiple built-in display interfaces, and multi-screen display capability. Additionally, it offers rich high-speed interfaces like PCI-E, Gigabit Ethernet for easy expansion.

Features:

1.3 Features

• High definition. Supports up to 8K decoding and dual-channel LVDS / EDP /MIPI/HDMI/VbyOne screen
• Supports multiple upgrade methods such as USB cable connection to computer, U disk, remote, etc.
• U disk configuration screen parameters, plug and play, perfect support for all sizes and resolutions of display screens.
• Perfectly supports mainstream industry release software and industry application software, ready to use.

• Perfectly supports a variety of mainstream touch screens such as infrared, optical, capacitive, resistive, etc., supports HID configuration of driver-free touch screens, and no debugging is required.
• Perfectly supports the industry's mainstream USB/serial port devices, printers, card readers, password keyboards, fingerprint readers, cameras, ID card recognition, QR code scanners, etc., and provides demo test programs.
• Highly integrated. With 7 USB ports, 7 serial ports, 4 IO ports, WIFI/RJ45/4G and other networking options.
• Built-in PCI-E module socket, supports various PCI-E modules such as YUGE and Quectel to access the Internet.

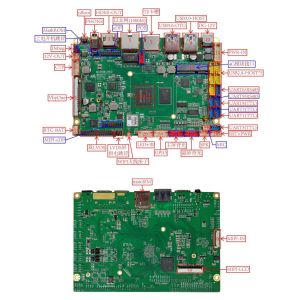

Technical Parameters:

1. uBoot upgrade button

2. PHONE headphone jack

3. HDMI OUT (HDMI output interface, multiplexed with eDP interface or VbyOne interface, choose one of the three)

4. eDP screen interface (multiplexed with HDMI output interface or VbyOne interface, choose one of the three)

5. RJ45 Ethernet (1000M)

6. POE network port

7. TF_CARD slot

8. USB3.0_OTG

9. USB3.0_HOST

10. DC-12V power supply

11. PWR-IN (12V power input interface)

12. 4G module PCI-E slot

13. USB 2.0 _HOST*5

14. UART6/RS485 (default TTL serial port, optional RS485)

15. UART9/RS485 (default TTL serial port, optional RS485)

16. UART 8 (default TTL serial port, optional RS232)

17. UART 7 (default TTL serial port, optional RS232)

18. UART 1 (default TTL serial port, optional RS232)

19. UART 3 (default TTL serial port, optional RS232)

20. RST+PWR (upgrade reset button + power switch interface)

21. MIC microphone interface

22. SPK speaker interface

23. Secondary screen backlight interface

24. Main screen backlight interface

25. GPIO

26. LED+IR (remote control light board interface)

27. WiFi antenna socket

28. MIPI-eDP screen interface (same as No. 45 mipi screen FPC interface, multiplexed with dual-channel LVDS interface, You can add a mipi to eDP board to turn it into an eDP interface)

29. LVDS-VCC (LVDS screen power supply jumps)

30. Dual-channel LVDS screen interface (multiplexed with MIPI interface)

31. RTC-BAT (RTC battery interface)

32. VbyOne interface (optional, multiplexed with HDMI output interface or eDP interface, choose one of the three)

33. CTP touch screen interface

34. 12V-OUT (12V output interface)

35. Debug serial port 0

36. The machine pops up when powered on (if the pop-up is unplugged, the machine will not boot up after powering on and needs to be powered on by pressing a button)

37. MaskROM button (can be triggered by passing a long needle through the phone)

38. nanoSIM card slot

39. MIPI-IN interface

40. MIPI screen FPC interface (multiplexed with MIPI interface No. 35 or dual-channel LVDS interface)

Applications:

The YNH RK3576 Industrial Control Mother Board, also known as the YNH 536, is a versatile embedded computing single board designed to meet the needs of various industries. With its origin in Shenzhen, this board is certified with UL certification, ensuring high quality and safety standards.

With a minimum order quantity of 100 units and a price range between 100 to 150 USD, this product is cost-effective for both small and large-scale projects. Each unit comes packaged with 100 pieces per box, making it convenient for bulk orders.

The YNH RK3576 board boasts a fast delivery time of 5-8 days and accepts payment terms through T/T, providing a hassle-free purchasing process for customers.

Operating on Android 14.0 with a Linux 5.10 kernel, this board offers a stable and reliable platform for various applications. It features 1 MIPI input interface, standard 4G DDR (with 8G/16G optional), and supports a wide range of network connections including 1000M Ethernet, POE network port, 2.4G+5G dual-band Wifi6 module, Bluetooth 5.4, and 4G connectivity through a PCI-E interface 4G module.

Equipped with 7 USB interfaces (1 USB3.0 OTG, 1 USB3.0 HOST, 5 USB 2.0 HOST), the YNH RK3576 board offers versatile connectivity options for peripherals and external devices.

Overall, the YNH RK3576 Industrial Control Mother Board is suitable for a variety of applications and scenarios such as industrial automation, IoT projects, digital signage, robotics, and more. Its robust features, reliable performance, and certification make it an ideal choice for developers and engineers looking to build innovative solutions.

Customization:

Product Customization Services for the RK3576 Board:

Brand Name: YNH

Model Number: 536

Place of Origin: Shenzhen

Certification: UL

Minimum Order Quantity: 100

Price: 100~150 USD

Packaging Details: 100pcs per box

Delivery Time: 5-8 days

Payment Terms: T/T

Serial Port: 7, 6 TTL Serial Ports (optional 4 RS232 And 2 RS485), 1 Debug

RTC Real Time Clock: The Battery Supports Time Memory For 3 Years And Supports Timed Power On And Off

Decoding resolution: Support Up To 8K

EMMC: Standard 32G (64G / 128G / 256G Optional)

MIPI-IN: 1 MIPI Input Interface

Support and Services:

The RK3576 Board product offers comprehensive technical support and services to ensure smooth operation and optimal performance. Our team of experts is dedicated to assisting with any product-related inquiries, troubleshooting, and maintenance needs. From initial setup to advanced configurations, we are here to guide you every step of the way.
