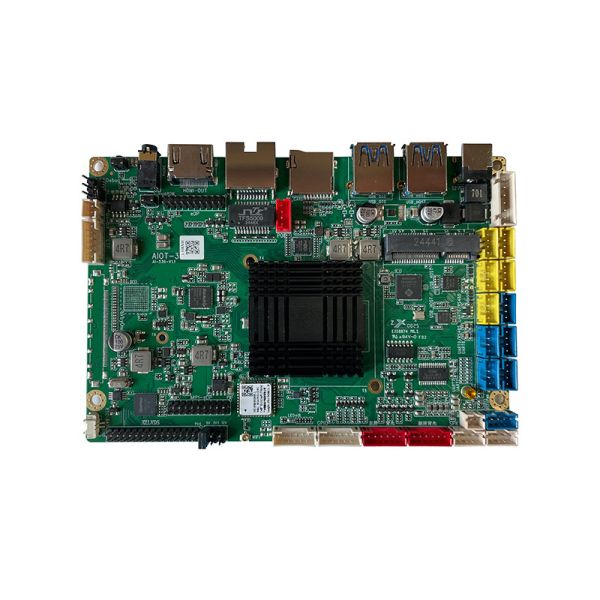

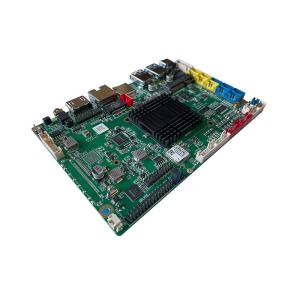

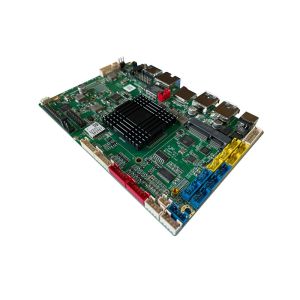

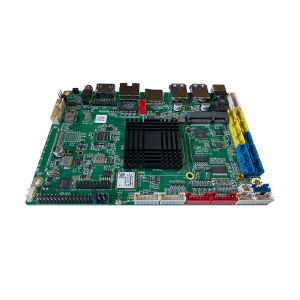

Product Description:

AI-536 is an intelligent multi-function all-in-one control board, which is widely used in various applications such as iFPD, industrial control, gateway, cloud terminal, face recognition equipment, vehicle-mounted central control, and commercial display.

AI-536 utilizes Rockchip's RK 3576 high-performance octa-core ARM 64-bit processor, running at a frequency of up to 2.2GHz. The chip incorporates a 6TOPS computing power NPU, operates on Android 14.0 system (with Linux 5.10 kernel), and features ARM G52 MC3 GPU for excellent performance and cost efficiency. It provides support for 8K video encoding and decoding, 8K display output, multiple display interfaces, multi-screen display support, high-speed interfaces such as PCI-E and Gigabit Ethernet, and allows for easy expansion.

Features:

High definition. Supports up to 8K decoding and dual-channel LVDS / EDP / MIPI / HDMI / VbyOne screen.
Supports multiple upgrade methods. You can upgrade using a USB cable connection to a computer, U disk, remote, and more.
U disk configuration. You can easily configure screen parameters using a U disk with plug and play functionality, providing perfect support for displays of all sizes and resolutions.
Perfect software compatibility. Supports mainstream industry release software and industry application software for seamless use.
Touch screen support. Supports various mainstream touch screens such as infrared, optical, capacitive, resistive, etc., with HID configuration for driver-free touch screens, eliminating the need for debugging.
Device compatibility. Perfectly supports the industry's mainstream USB/serial port devices including printers, card readers, password keyboards, fingerprint readers, cameras, ID card recognition, QR code scanners, and more, with demo test programs provided.
Highly integrated. Equipped with 7 USB ports, 7 serial ports, 4 IO ports, WIFI/RJ45/4G, and other networking options for comprehensive connectivity.
Built-in PCI-E module socket. Supports various PCI-E modules like YUGE and Quectel for internet access.

Technical Parameters:

1. uBoot upgrade button
2. PHONE headphone jack
3. HDMI OUT (HDMI output interface, multiplexed with eDP interface or VbyOne interface, choose one of the three)
4. eDP screen interface (multiplexed with HDMI output interface or VbyOne interface, choose one of the three)
5. RJ45 Ethernet (1000M)
6. POE network port
7. TF_CARD slot
8. USB3.0_OTG
9. USB3.0_HOST
10. DC-12V power supply
11. PWR-IN (12V power input interface)
12. 4G module PCI-E slot
13. USB 2.0 _HOST*5
14. UART6/RS485 (default TTL serial port, optional RS485)
15. UART9/RS485 (default TTL serial port, optional RS485)
16. UART 8 (default TTL serial port, optional RS232)
17. UART 7 (default TTL serial port, optional RS232)
18. UART 1 (default TTL serial port, optional RS232)
19. UART 3 (default TTL serial port, optional RS232)
20. RST+PWR (upgrade reset button + power switch interface)
21. MIC microphone interface
22. SPK speaker interface
23. Secondary screen backlight interface
24. Main screen backlight interface
25. GPIO
26. LED+IR (remote control light board interface)
27. WiFi antenna socket
28. MIPI-eDP screen interface (same as No. 45 mipi screen FPC interface, multiplexed with dual-channel LVDS interface)
29. LVDS-VCC (LVDS screen power supply jumps)
30. Dual-channel LVDS screen interface (multiplexed with MIPI interface)
31. RTC-BAT (RTC battery interface)
32. VbyOne interface (optional, multiplexed with HDMI output interface or eDP interface, choose one of the three)
33. CTP touch screen interface
34. 12V-OUT (12V output interface)
35. Debug serial port 0
36. The machine pops up when powered on (if the pop-up is unplugged, the machine will not boot up after powering on and needs to be powered on by pressing a button)
37. MaskROM button (can be triggered by passing a long needle through the phone)
38. nanoSIM card slot
39. MIPI-IN interface
40. MIPI screen FPC interface (multiplexed with MIPI interface No. 35 or dual-channel LVDS interface)

Applications:

The YNH RK3576 Board, also known as the Rocker 3576 Dev Board, is a high-performance development board that is ideal for a variety of product application occasions and scenarios. Its versatility and powerful features make it suitable for a wide range of uses. Below are some of the key application occasions and scenarios for the YNH RK3576 Board:
1. Industrial Automation: The YNH RK3576 Board is perfect for industrial automation applications due to its high processing power and reliable performance. It can be used for controlling machinery, monitoring processes, and more.
2. Digital Signage: With its powerful GPU and support for 4K resolution, the YNH RK3576 Board is an excellent choice for digital signage applications. It can drive high-quality displays and deliver engaging content.
3. Smart Home Devices: The YNH RK3576 Board is well-suited for smart home devices such as smart speakers, smart cameras, and smart hubs. Its connectivity options and processing power make it ideal for these applications.
4. Robotics: The YNH RK3576 Board can be used in robotics projects for tasks such as navigation, object recognition, and motion control. Its fast response times and versatile I/O interfaces make it a great choice for robotics development.
5. Education and Research: The YNH RK3576 Board is also suitable for educational purposes and research projects. Its open-source nature and support for various operating systems make it a valuable tool for learning about embedded systems and software development.
Regardless of the application occasion or scenario, the YNH RK3576 Board offers high performance, reliability, and flexibility. Its certification by UL ensures safety and quality, while its EMMC storage options and USB interfaces provide ample storage and connectivity. The board's RTC real-time clock and system upgrade support further enhance its functionality.
For those interested in purchasing the YNH RK3576 Board, the minimum order quantity is 100 units, with a price range of 100 to 150 USD per unit. The packaging details include 100 pieces per box, and the delivery time is estimated to be 5-8 days. Payment terms are accepted via T/T.

Customization:

Product Customization Services for the RK3576 Board
Brand Name: YNH
Model Number: 536
Place of Origin: Shenzhen
Certification: UL
Minimum Order Quantity: 100
Price: 100~150 USD
Packaging Details: 100pcs per box
Delivery Time: 5-8days
Payment Terms: T/T
Decoding resolution: Support Up To 8K
DDR: Standard 4G ( 8G/16G Optional ) LP DDR 4
Serial Port: 7, 6 TTL Serial Ports (optional 4 RS232 And 2 RS485 ) , 1 Debug
USB interface: 7, 1 USB3.0 _OTG , 1 USB3.0 _HOST , 5 USB 2.0 _HOST
CPU: Rockchip RK3576 , Octa -core, 2.2 GHz

Support and Services:

The RK3576 Board product offers comprehensive Product Technical Support and Services to ensure smooth operation and optimal performance. Our dedicated technical support team is available to assist with any inquiries or issues that may arise. Services include troubleshooting, software updates, and guidance on product optimization. Rest assured that we are committed to providing reliable support to meet your needs and enhance your experience with the RK3576 Board.
