Product Description:
Scope of Application
YNH-732 is a multi-functional intelligent motherboard, commonly
used in various fields such as ARM PC, large-screen splicing,
animation games, Conference tablets, edge computing, industrial
computers, TV player boxes, cloud servers, smart NVRs.
Product Overview
YNH-732 employs the Rockchip RK3588 new generation flagship
octa-core 64-bit processor. It features a 6TOPS computing power NPU
and is equipped with Android12.0/Ubuntu20.04 system (kernel is
Linux4.19). The GPU utilizes Mali-G610 MC4, providing exceptional
performance and cost efficiency. The motherboard supports 8K video
codec, 8K display output, built-in multiple display interfaces, and
multi-screen display capabilities. It also boasts rich high-speed
interfaces such as PCIe, TYPE-C, and Gigabit Ethernet for easy
expansion.
Features:
Product Features
- High definition. Supports up to 8K decoding and various HDMI
displays.
- Support multiple upgrade methods such as remote, USB cable
connected to computer, U disk OTA package, etc.
- U disk, TF card configuration screen parameters, plug and play,
perfect support for all sizes, all resolution displays.
- Perfectly supports mainstream industry release software and
industry application software, ready to use.
- Perfectly supports infrared, optical, capacitive, resistive and
other mainstream touch screens, and supports driver-free touch
screens HID configuration, no debugging required.
- Perfectly supports the industry's mainstream USB/serial devices,
printers, card readers, password keyboards, fingerprint scanners,
Camera, ID card recognition, QR code scanner, etc., provide demo
test program.
- Highly integrated. With 6 USB ports, 4 serial ports,
WIFI/RJ45/4G/5G and other networking options.
- Built-in PCI-E module socket, supports various PCI-E modules such
as YUGE and Quectel to access the Internet.
Technical Parameters:
| GPU | Mali-G610 MC4 |
| Timer switch | Support |
| CPU | RK3588, Octa-core, 2.4 GHz |
| Installation | Desktop |
| Operating system | Android 12.0/Ubuntu 20.04/Debian 11 System (kernel Is Linux 5.10) |
| Power supply | DC12V – 2A (±10%) |
| Device size | 214 Mm*150 Mm*52.2 Mm (length*width*height) |
| Network support | Ethernet *2, 1000M; 2.4G+5G Dual-band Wifi6 Module, Bluetooth 5.4;
Support 4G/5G, Connect To PCIE 4G/5G Module |
| HDMI output | 1, Up To 8K@60fps Output |
| System Upgrade | Support U Disk/T Card/Network Upgrade |
Applications:

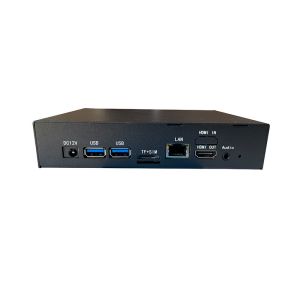

When it comes to the YNH 732-BOX Android Box, the product
application occasions and scenarios are diverse and impactful. This
cutting-edge device, originating from Shenzhen, is designed to
cater to a wide range of needs with its versatile features and
specifications.
One of the key application scenarios for the YNH 732-BOX is as an
Android Navigation Box. Its advanced features, including the RK3588
Octa-core CPU running at 2.4 GHz, make it an ideal companion for
in-car entertainment and navigation systems. The real-time clock
(RTC) support ensures accurate timekeeping, while the dual Ethernet
ports and Dual-band Wifi6 Module provide seamless connectivity for
navigation updates and multimedia streaming.
Additionally, the YNH 732-BOX can be effectively utilized in
multimedia setups. With support for 8K video playback and
multi-channel 4K video decoding, this Android Box is perfect for
home entertainment systems, digital signage displays, or multimedia
presentations. The inclusion of Bluetooth 5.4 and 4G/5G
connectivity options further enhance its versatility, allowing
users to stream content effortlessly from various sources.
Another prevalent application box scenario for the YNH 732-BOX is
in smart home setups. The timer switch feature enables users to
automate tasks and control connected devices conveniently. Whether
it's managing lighting systems, thermostats, or security cameras,
this Android Box serves as a central hub for smart home automation.
Businesses and enterprises can also benefit from the YNH 732-BOX in
various applications. From digital signage solutions to conference
room setups, this Android Box offers reliability and performance.
Its UL certification ensures compliance with safety standards,
making it a trusted choice for commercial installations.
With a minimum order quantity of 100 units and a price range of 100
to 200 USD per unit, the YNH 732-BOX strikes a balance between
affordability and quality. The packaging details of 100pcs per box
make it convenient for bulk orders, and the short delivery time of
5-8 days ensures timely fulfillment of orders. Payment terms
through T/T further streamline the procurement process for
businesses.
Customization:
Product Customization Services for the Android Box RK:
Brand Name: YNH
Model Number: 732-BOX
Place of Origin: Shenzhen
Certification: UL
Minimum Order Quantity: 100
Price: 100~200 USD
Packaging Details: 100pcs per box
Delivery Time: 5-8 days
Payment Terms: T/T
CPU: RK3588, Octa-core, 2.4 GHz
USB Interface: 6 Ports, 2 USB 3.0 (one of which is OTG), 4 USB 2.0
Multimedia: Support 8K Video and Multi-channel 4K Video Decoding,
Support Multi-channel 4K Video Encoding
Protection Level: IP56
Power Supply: DC12V – 2A (±10%)
Android Navigation Box RK
Support and Services:
Product Technical Support and Services:
- Troubleshooting assistance for hardware and software issues.
- Software updates and patches to ensure optimal performance.
- Installation guidance and setup support for the Android Box.
- User manuals and guides for operating the device efficiently.
- Warranty coverage and repair services for eligible issues.
